- principle
The power device of the rotary vibrating screen is an eccentric block with different phases at the upper and lower ends of the vibrating motor, which produces a composite inertial force due to the high-speed rotation. The inertial force forces the vibrating body of the screen to rotate in a complex way, and the frame to and fro continuously under the action of the vibration force, thus driving the screen surface to vibrate periodically, so that the material on the screen surface can move in a directional and leaping way with the screen box.The material smaller than the sieve aperture falls to the lower layer through the sieve aperture and becomes the sieve material. The material larger than the sieve aperture is discharged from the discharge outlet after continuous jump movement, and finally the sieving work is completed.
Characteristic advantages:
1. Screening accuracy is high and efficiency is high. Any kind of powder, granule and mucus can be applied.
2. Components have no dead corners and are easy to be thoroughly cleaned and disinfected.
3. New type of grid structure, long service life of screen, only 3-5 minutes to change the screen.
4. Single-layer and multi-layer screen can be used.
5. Material is discharged automatically and can be operated continuously.
6. Small size, no space, easy to move, the outlet can be adjusted 360 degrees at will.
7. Fully sealed structure, dust does not fly, liquid does not leak, mesh does not block, screening up to 500 meshes, filtering up to 5 microns.
- principle
Model XZS-400 XZS-600 XZS-800 XZS-1000 XZS-1200 XZS-1500 XZS-1800 XZS-2000 Screening diameter (mm) Phi 340 Phi 540 Phi 730 Phi 900 Phi 1100 Phi 1400 Phi 1700 Phi 1886 Layer number 1-3 Motor power 0.25 0.55 0.75 1.1 1.1 1.5 3 3 - ·
Grouped equipment

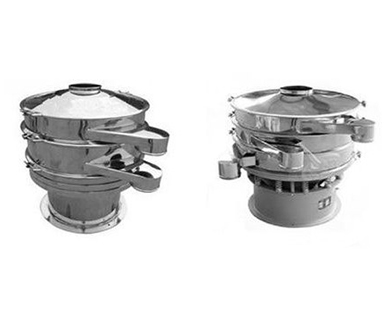

Rotary vibrating screen
